How Can a Topographic Survey Support a Zone Change Site Plan?
A topographic survey gives a rezoning project something it can’t move forward without: real facts about the ground itself. No guesses. Not old maps. Actual elevations, actual slopes, actual structures.A site plan is built on assumptions. Get it early, and every decision that follows rests on solid information.
Map Existing Site Conditions Before the Zone Change Concept Is Finalized
Before anyone draws a single building on a site plan, someone needs to know what’s already there.

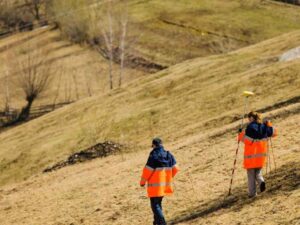

A topographic survey records the ground surface, existing structures, access points, and other physical features on the property. This becomes the base layer planners and designers work from. Without it, they’re sketching over blank space and hoping the terrain cooperates.
Order this survey while the zone change concept is still forming, not after. A concept built on real data needs fewer revisions later. A concept built on guesswork almost always does.
Use Elevation Data to Test Whether the Proposed Layout Fits the Land
Once the survey comes back, the project team can check something crucial: does the proposed layout actually work on this land?
Contour lines and spot elevations provide terrain data that shows where the ground rises, where it drops, and by how much. That information tells the team whether planned building areas, parking, circulation routes, and open space can reasonably sit where they’re drawn.
A flat-looking site plan can hide a steep slope nobody accounted for. Elevation data catches that early, while the concept can still change. Waiting until construction drawings are underway to discover a grading problem costs far more than catching it during zone change planning.
Show Physical Site Constraints That May Affect the Rezoning Concept
Not every constraint on a property is invisible. Some are sitting right there, mapped and measured.
Slopes, retaining walls, and existing improvements can all limit where development is realistic under the proposed zoning. A steep bank might rule out a building footprint that looked fine on paper. An existing retaining wall might dictate where new construction can and can’t go.
This is about feasibility, plain and simple. Can the proposed use actually fit on this piece of land, given what’s physically there? A topographic survey answers that question with data instead of assumptions.
Give Planners and Designers a Consistent Base for Site Plan Revisions
Rezoning site plans rarely stay the same from first draft to final approval. Architects revise. Engineers adjust. Planning staff request changes. Attorneys weigh in.
Every one of these people needs to work from the same starting point, or the revisions stop lining up. A topographic survey provides that shared reference. When the parking layout shifts or a building footprint gets smaller, everyone involved is still measuring against the same real-world conditions.
Without a consistent base map, successive versions of a site plan can drift away from actual field conditions. Small errors compound. What started as a minor adjustment on paper can turn into a mismatch with reality by the third or fourth revision.
Carry Topographic Survey Data Into Later Development Planning
A topographic survey collected for a zone change doesn’t lose its value once the rezoning is approved.
That same data often continues to support the project as it moves into more detailed design. Engineers use it for grading and drainage planning. Architects reference it when finalizing building placement. The early investment in accurate site data keeps paying off well past the zoning decision.
This continuity matters. A project that starts with reliable survey information and keeps building on it stays grounded in facts, from the first concept sketch through final construction plans. Projects that skip this step, or redo it piecemeal, often end up paying for the same information twice.
Frequently Asked Questions
When should a topographic survey be completed for a zone change site plan?
The most useful timing is during early concept development, before the rezoning layout and application materials are finalized. This gives the project team a chance to evaluate the site while changes are still easy to make.
Does every zone change application require a topographic survey?
That depends on the jurisdiction and the specific project. Even when it isn’t formally required, a topographic survey can be worth ordering whenever terrain or existing site conditions could affect the proposed development concept.
Can the same topographic survey be used after the zone change is approved?
Often, yes. The data can continue supporting later planning and design work, though additional or updated survey information may be needed as the project becomes more detailed.
